Get DMA ID
1. Download Tools
Download all needed tools from here: Tools
Please completely uninstall the anti-cheat software running at startup before dumping the device list. (Vanguard, Faceit, ACE, 5E, Wanmei, etc.)

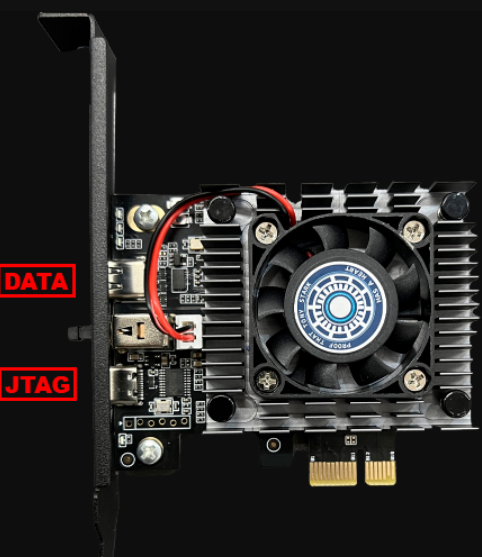

2. Switch the port on DMA to JTAG
The port closest to the motherboard is the JTAG port, while the one farthest from it is the DATA port.
3. RS232 DMA Driver (LeetDMA, CaptainDMA, Others)
Your DMA are either I. RS232 DMA Driver (LeetDMA, CaptainDMA, Others) or II. CH347 DMA Driver (ScartletDMA, CaptainDMA, PeeperDMA, Hackdma and Others).
Try both if you don't know which one you are.

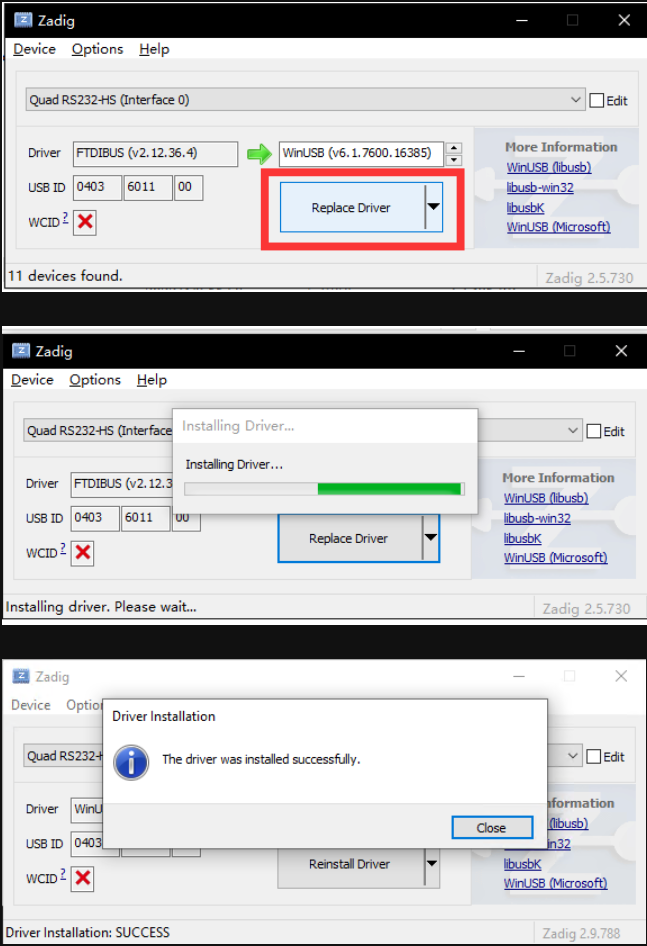

1. Download the tools above and extract. Open Drivers folder -> Run zadiag.exe

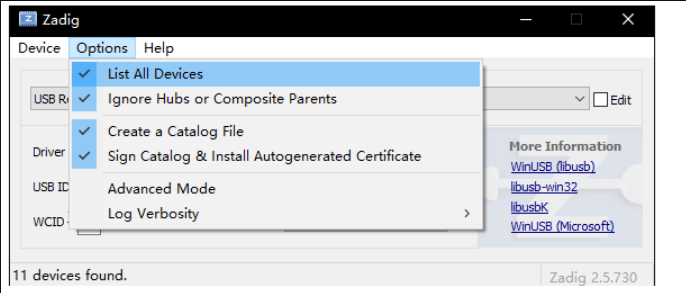

2. Click Options -> List All Devices

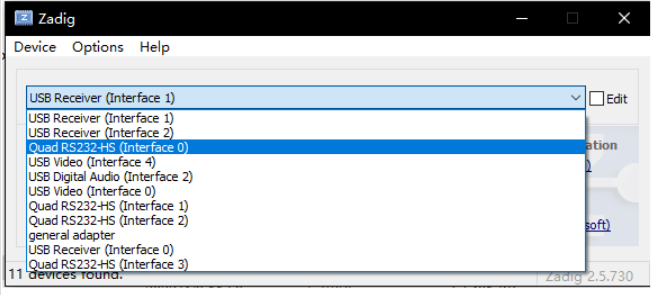

Quad RS232-HS(Interface 0)
(Can't find the device? Double check your dma is plugged to JTAG port or try CH347 DMA Burning below)
4. CH347 DMA Driver (ScartletDMA, CaptainDMA, PeeperDMA, Hackdma and Others)
Download the tools above and extract. Open Drivers folder -> Open CH341PAR -> Open CH341PAR -> Run & Install SETUP.exe
5. GET DMA ID

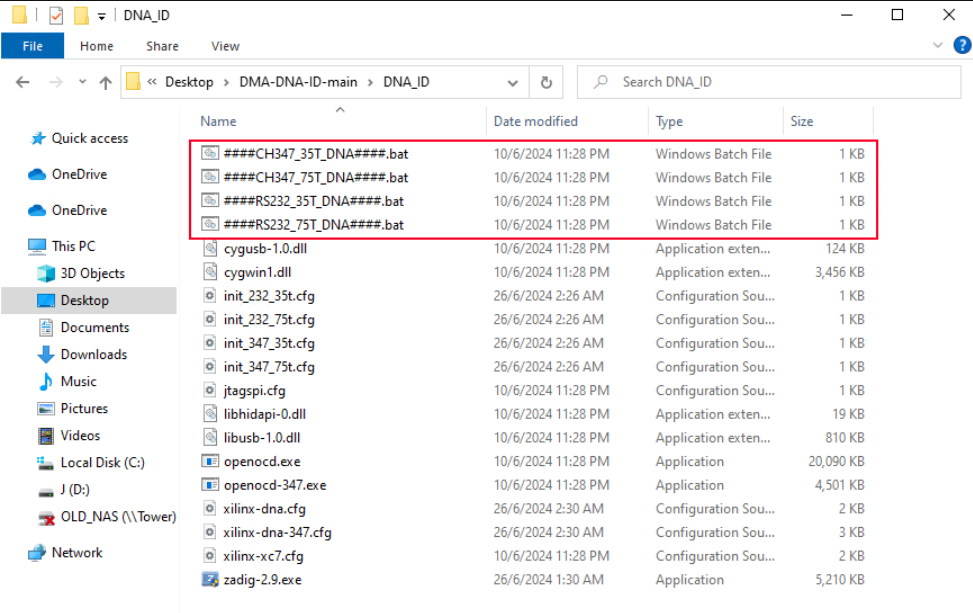

1. Based on your DMA board type (35T / 75T), run the corresponding .bat file
(If you're unsure whether to choose CH347 or RS232, just run both; one of them will display the ID.)

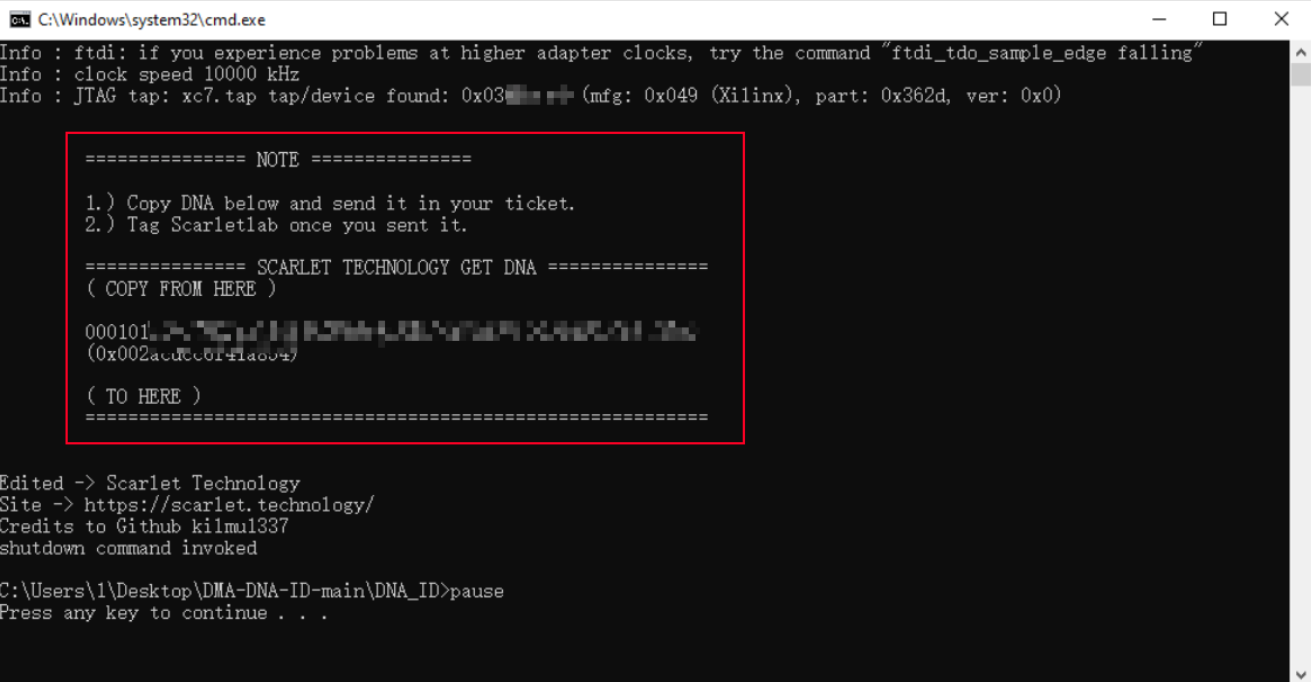

2. This is how the correct results looks like down below:
